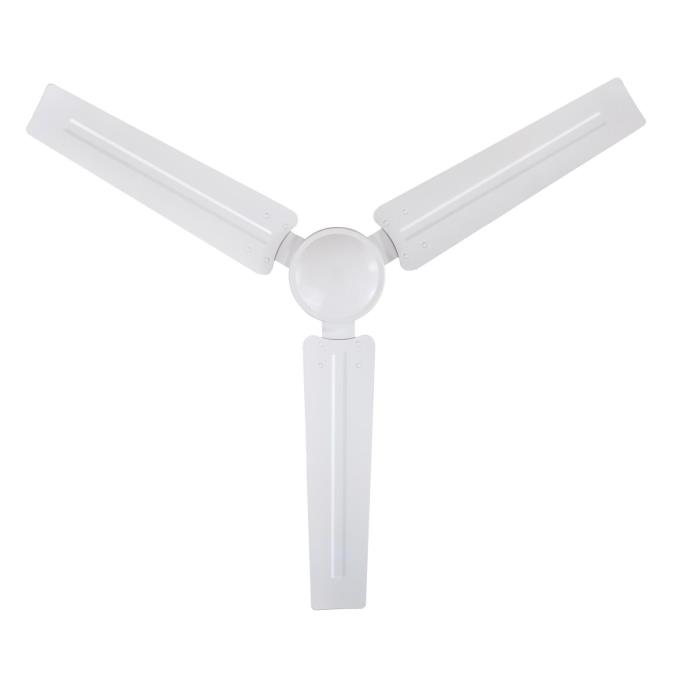

Jax Industrial-Style 56-Inch Indoor Ceiling Fan, J-Hook Installation System

Jax Industrial-Style 56-Inch Indoor Ceiling Fan, J-Hook Installation System

White Finish with White Steel Blades, Wall Control Included


No.7840900
Blade MaterialSteel
Primary Blade FinishWhite
Blade Pitch (in degrees)9
MotorSilicon Steel Motor 172mm x 15mm
Capacitor TypeSingle
Mount TypeDown Rod Only
Lead Wire Length (inches)54
A) Top of Canopy to Bottom of Blade (inches)18.50
B) Top of Canopy to Bottom of Switch House (inches)17.32
C) Top of Canopy to Bottom of Canopy (inches)4.02
D) Width of Motor Housing (inches)7.72
E) Width of Canopy (inches)5.71
RPM (High)196
Amp (High)0.50
ETLY
Blade Length (inches)24.44
Fan Blade Width (inches)5.81
Fan Width (inches)56
Indoor/OutdoorIndoor

The 56-inch Jax industrial-style ceiling fan is durably constructed for commercial applications featuring a 12-inch long down rod ideal for higher ceilings. The crisp white ceiling fan finish blends seamlessly into most spaces, discreetly enhancing the comfort of any room.

The Jax fan is durably constructed, needs minimal assembly, and includes a five-speed wall control, making it a breeze to operate all five fan speeds for convenient, customized comfort.

What's Included

Ceiling fan, 12-inch down rod, wall control, j-hook mounting plate, mounting hardware and installation instructions.

Westinghouse is a trusted, global brand. We know lighting and offer products with exceptional quality, reliability, and functionality.

Product reference number 78409.



FEATURES & BENEFITS
  • The Jax 56 inch indoor ceiling fan is great for commercial applications
  • Three steel blades in white finish complement the white fan for a modern ceiling fan with an industrial aesthetic
  • Ceiling fan with wall control provides easy operation of 5 fan speeds and on/off function
APPLICATIONS
  • Ideal for cooling rooms up to 400 square feet (20 feet by 20 feet)
  • J-hook mounting plate allows hands-free wiring during installation
  • Down-rod installation only for indoor use
  • Ceiling fan without lights adds a cooling effect to large work areas and high ceiling rooms
EFFICIENCY
  • High quality motor delivers powerful air movement and quiet performance
  • Ceiling fans increase your comfort level in summer and winter while lowering energy costs
WARRANTY
  • 15-year limited warranty on motor
  • Two-year warranty on all other parts
