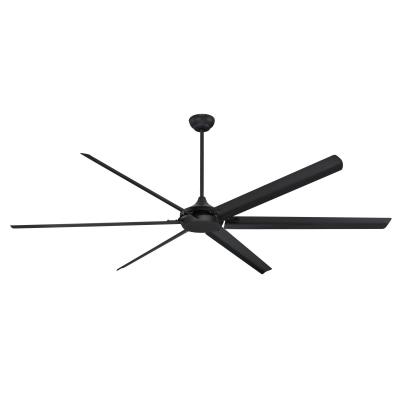

Widespan 100-Inch Indoor/Outdoor Ceiling Fan, DC Motor

Widespan 100-Inch Indoor/Outdoor Ceiling Fan, DC Motor

Matte Black Finish with Black Blades, Remote Control Included


No.7224800
Blade MaterialAluminum
Primary Blade FinishBlack
Blade Pitch (in degrees)17
MotorDC Motor 165mm x 30mm
Mount TypeDown Rod Only
Lead Wire Length (inches)30
A) Top of Canopy to Bottom of Blade (inches)33
C) Top of Canopy to Bottom of Canopy (inches)3
D) Width of Motor Housing (inches)11.75
E) Width of Canopy (inches)7.50
RPM (High)75
Amp (High)1.55
ETLY
Blade Length (inches)46.46
Fan Blade Width (inches)4.75
Fan Width (inches)100
Indoor/OutdoorIndoor/Outdoor

The Indoor/Outdoor Widespan 100-Inch HVLS Industrial Ceiling Fan is expertly designed to enhance air circulation in expansive spaces, making it ideal for warehouses, gymnasiums, and high-ceiling rooms. Features include an energy-efficient DC motor, convenient multi-functional remote control, and a damp-rating. With its sleek matte black finish and six durable aluminum blades, this fan not only performs efficiently but adds a modern touch to any large indoor or outdoor environment.

Product reference number 72248.

What's Included

Ceiling fan, 24-inch down rod, remote control, installation instructions and mounting hardware.



FEATURES & BENEFITS
  • Widespan 100-inch indoor/outdoor ceiling fan excels in industrial applications, providing optimal airflow and efficiency for large spaces

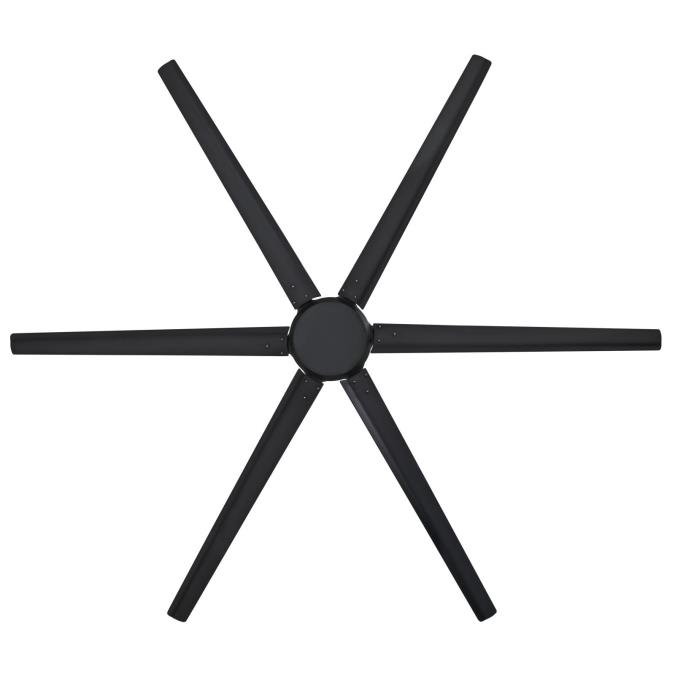

  • Six aluminum blades in a black finish complement the industrial ceiling fan design and matte black fan finish

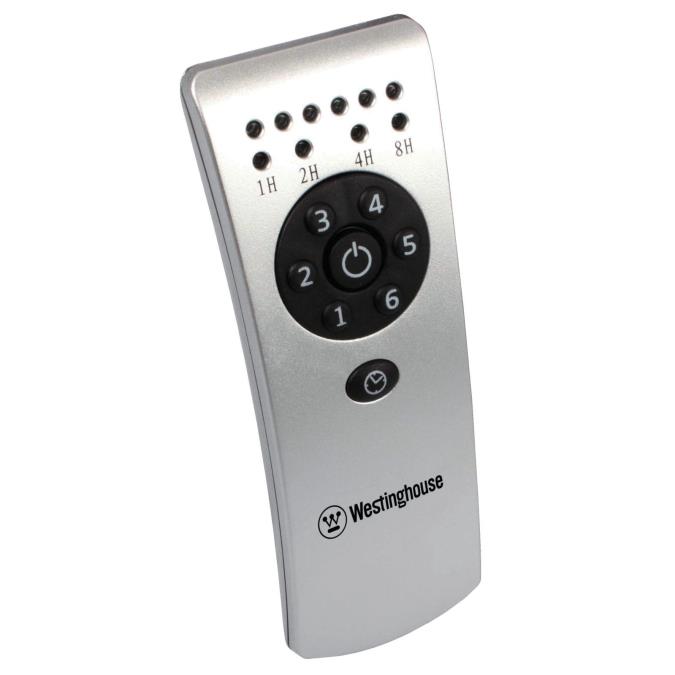

  • User-friendly remote control operates six fan speed settings, seasonal directional control, multiple timer options, and a speed memory function
APPLICATIONS
  • Suitable for both indoor and outdoor environments, ensuring durability against weather conditions

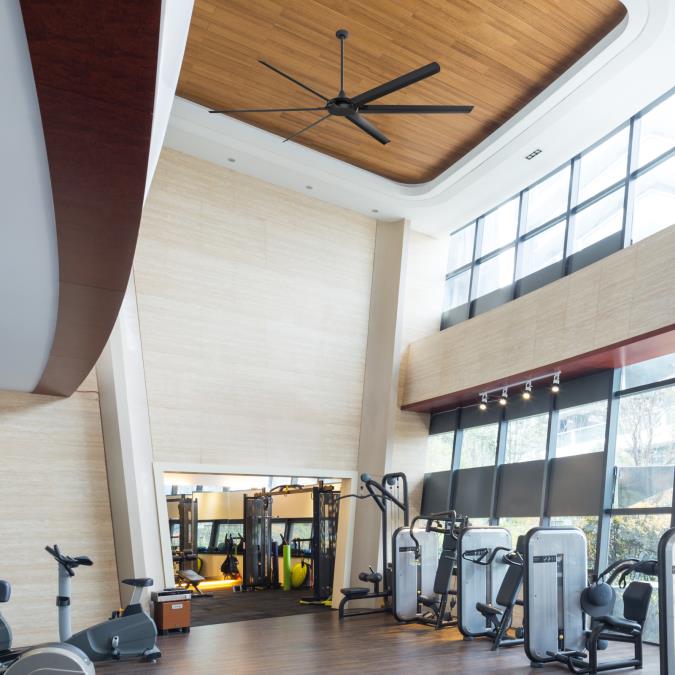

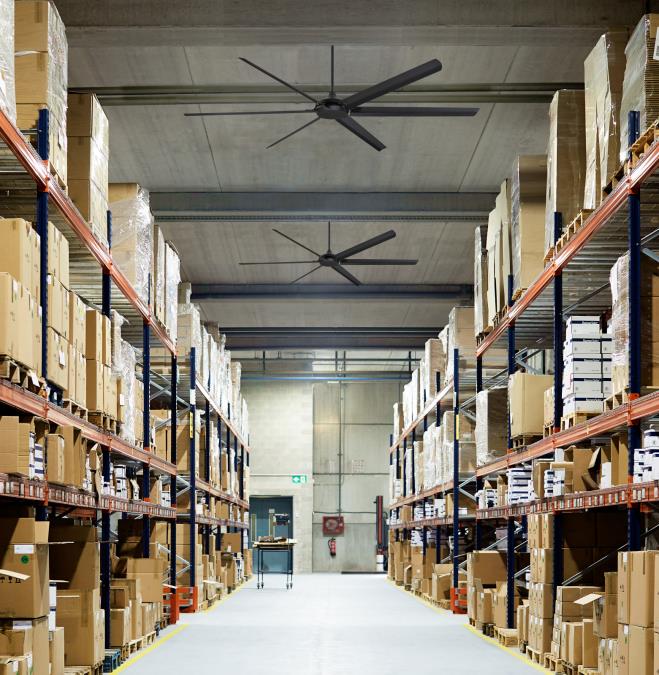

  • Big fans are perfect for large commercial spaces such as warehouses and gymnasiums

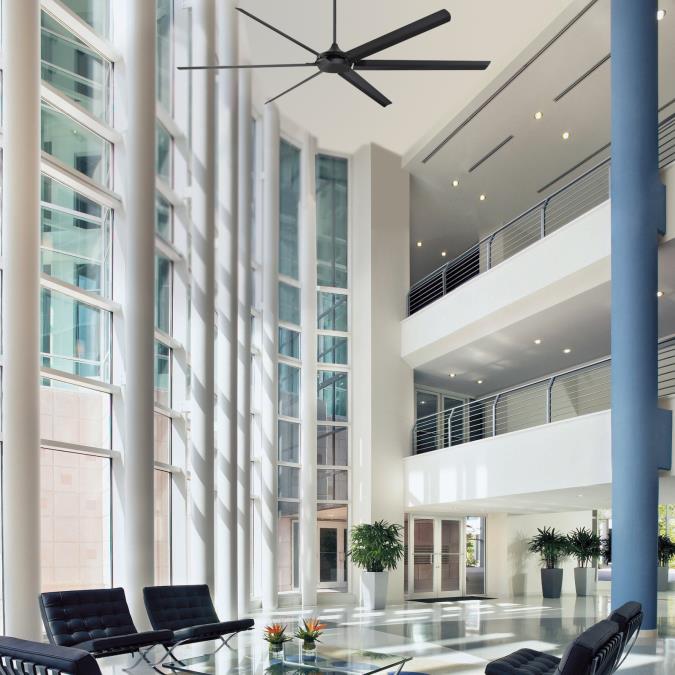

  • Ideal for storage facilities, workshops, and high-ceiling spaces greater than 10 feet

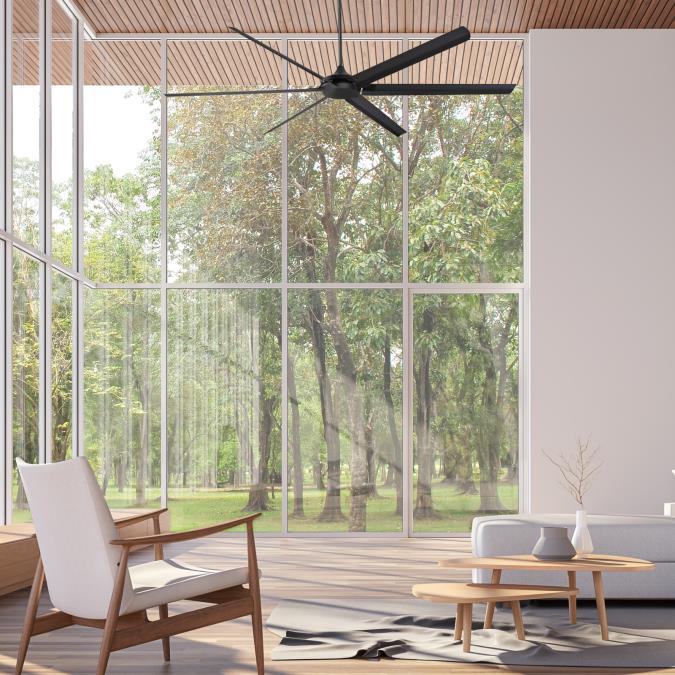

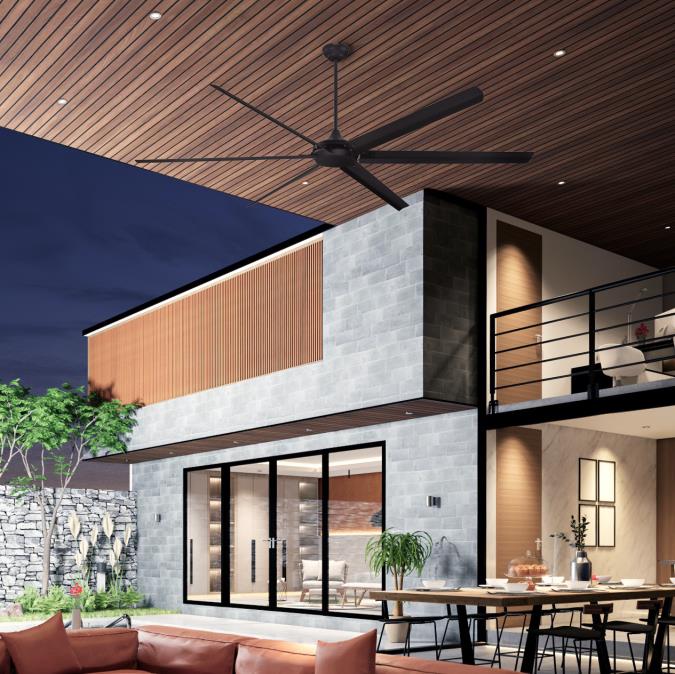

  • Excellent for large outdoor entertainment and dining areas
EFFICIENCY
  • The high-performance DC motor delivers outstanding efficiency and operates quietly, ensuring optimal air circulation.
  • It provides year-round comfort while significantly lowering operating costs, achieving a 62% increase in energy efficiency compared to traditional AC motor fans.
  • The high volume, low speed (HVLS) industrial ceiling fan improves comfort in both summer and winter, while also reducing energy expenses.
INSTALLATION
  • Fan must be mounted directly to the building structure, not installed with a standard ceiling fan box
  • For safe operation and optimal performance fan must be mounted with the blades at least 10 feet above the floor
  • Ideal for spaces over 400 square feet
  • Designed for down rod installation only
  • Damp-location approved for outdoor or indoor areas
