Page Background www.westinghouselighting.com

195

CEILING FAN SPECIFICATIONS

If a Combo Style Fan with a 4" Down Rod is Installed without the Down Rod, Subtract 3" from the Dimensions Listed (A, B, F).

If a Combo Style Fan with a 6" Down Rod is Installed without the Down Rod, Subtract 5" from the Dimensions Listed (A, B, F).

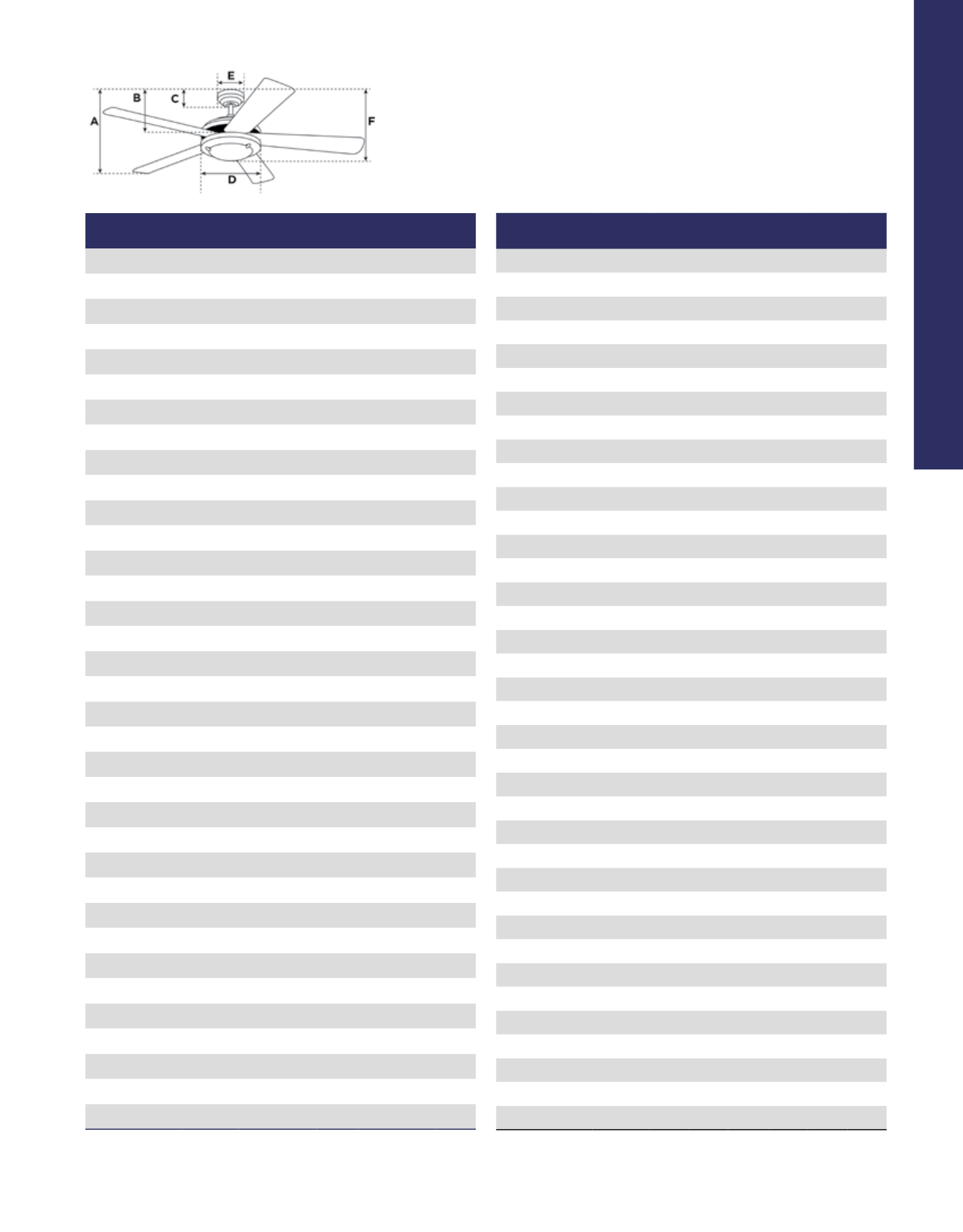

A. Ceiling to bottom of blade

B. Ceiling to bottom of switch housing

C. Ceiling to bottom of canopy

D. Width of motor housing

E. Width of canopy

F. Ceiling to bottom of light kit

Family Name

Size of

Down Rod

Included

A B

C D E

F

Aerialist

N/A 18.50" N/A N/A 7.77"

N/A N/A

Aiden

3/4" X 6" 11.61" 14.45" 2.44" 11.42" 5.20" N/A

Alloy 42"

3/4" X 4" 6.38" 11.00" 2.50" 6.75" 5.13" 11.75"

Alloy 52"

3/4" X 4" 8.07" 11.42" 2.44" 7.05" 5.12" 13.19"

Alloy II

3/4" X 4" 10.00" 11.42" 2.44" 7.09" 5.12" 13.90"

Alloy LED

3/4" X 4" 8.07" 11.42" 2.44" 7.05" 5.12" 13.19"

Alta Vista

3/4" X 4" 10.83" 8.39" 2.44" 7.87" 5.12" 13.70"

Arcadia

3/4" X 4" 9.38" 11.00" 2.00" 9.75" 5.88" 14.00"

Bendan

3/4" X 4" 11.42" 7.87" 2.44" 10.24" 5.12" 14.17"

Bendan LED

3/4" X 4" 11.42" 7.87" 2.44" 10.24" 5.12" 14.17"

Bocca

3/4" X 8" 15.04" N/A 2.28" 11.10" 5.91" 18.11"

Bolton

3/4" X 4" 9.25" 12.20" 2.36" 11.02" 5.12" 14.37"

Brentford

3/4" X 4" 9.96" 11.65" 2.06" 12.36" 5.83" 18.78"

Carolina LED

N/A 6.88" 9.75"

N/A 11.10"

N/A 13.75"

Casanova

N/A 8.00" 8.50" N/A 11.00" N/A N/A

Casanova

Supreme

N/A 7.25" 8.50" N/A 8.75" N/A 12.50"

Cassidy

3/4" X 4" 11.22" 11.81" 2.09" 8.58" 5.12" 16.54"

Castle

3/4" X 6" 11.43" 12.63" 2.40" 10.49" 5.13" 15.98"

Castle LED

3/4" X 6" 11.43" 12.63" 2.40" 10.49" 5.13" 15.98"

Cayuga

3/4" X 6" 13.78" 11.54" 2.56" 10.63" 5.12" 17.13"

Comet (Outdoor) 3/4" X 4" 11.00" 12.6" 2.40" 11.30" 5.10" 14.40"

Comet

3/4" X 4" 11.88" 14.25" 2.25" 11.50" 5.13" 14.25"

Contempra

N/A 7.48" 7.48"

N/A 10.24" N/A N/A

Contempra IV

N/A 7.13"

8.13"

N/A 11.50" N/A 13.00"

Contempra Trio

N/A 5.88" 7.50"

N/A 10.38" N/A 13.38"

Contractor's

Choice

3/4" X 4" 10.25" 11.25" 2.25" 9.00" 5.25" N/A

Damen

3/4" X 8" 12.40" 11.02" 2.06" 7.87" 5.86" 16.54"

Deacon

3/4" X 4" 11.81" 12.60" 2.44" 11.02" 5.12"

N/A

Delancey

3/4" X 4" 12.00" 9.45" 2.06" 7.87" 5.98" 16.14"

Delancey LED 3/4" X 4" 12.00" 9.45" 2.05" 7.87" 5.98" 16.14"

Desoto

3/4" X 6" 13.39" 13.78" 2.56" 8.27" 5.12" 15.75"

Elite

3/4" X 4" 9.63" 12.63" 2.13" 9.00" 5.25" 16.63"

Fairview

3/4" X 4" 12.25" 13.00" 2.38" 11.00" 5.13" 18.88"

Great Falls

3/4" X 4" 10.75" 12.76" 2.72" 7.87" 5.20" 20.08"

Hadley

N/A 5.13" 6.75"

N/A 8.46" N/A 10.75"

Family Name

Size of

Down Rod

Included

A B

C D E

F

Halley (Outdoor)

N/A 9.45" 2.95" 2.95" 9.45" 9.06" 13.78"

Halley

N/A 9.45" 2.95" 2.95" 9.45" 9.06" 13.78"

Harmony

3/4" X 6" 10.63" 12.75" 2.00" 7.50" 6.00" 17.13"

Industrial

1/2" X 12" 17.32" 15.55" 2.44" 7.72" 5.13"

N/A

Industrial (78049) 1/2" X 12" 18.50" 17.32" 4.02" 7.72" 5.71"

N/A

Lafayette

3/4" X 6" 15.50" 16.13" 2.38" 12.25" 5.13" 24.00"

Lafayette LED 3/4" X 6" 15.5" 16.13" 2.38" 12.25" 5.13" 24.00"

Longo

3/4" X 4" 13.00" 6.70" 2.06" 7.09" 5.86" 14.76"

Newtown

3/4" X 4" 11.38" 12.63" 2.38" 10.00" 5.13" 17.75"

Oasis

3/4" X 4" 13.63" 13.38" 2.38" 9.00" 5.13" 18.75"

Origami

3/4" X 4" 7.88" 10.00" 2.50" 6.75" 5.13" 14.75"

Panorama

3/4" X 4" 12.62" 9.00" 2.50" 10.75" 5.12" 15.87"

Petite

N/A 6.75" 8.00" N/A 9.00" N/A 12.00"

Quince

3/4" X 4" 9.00" 10.38" 2.50" 6.75" 5.13" 12.13"

Richboro SE

3/4" X 4" 12.25" 18.13" 2.25" 8.63" 5.13" 19.25"

Roundabout

3/4" X 4" 11.42" 13.75" 2.36" 7.68" 5.12" 15.92"

Solana

3/4" X 4" 10.75" 13.00" 2.00" 7.63" 6.25" 17.38"

Sparta

3/4" X 4" 10.70" 11.60" 2.10"

9.10" 5.86" 13.00"

Stella Mira

3/4" X 10" 16.22" N/A 2.56" 8.27" 5.12" 27.36"

Sumter LED

N/A 6.00" 7.87"

N/A 11.42" N/A 14.20"

Swirl

3/4" X 4" 13.5" 12.00" 2.25" 12.00" 5.25" 18.00"

Techno

3/4" X 4" 9.13" 11.02" 2.06" 8.39" 6.14" 12.40"

Techno II

3/4" X 4" 11.02" 11.81" 2.06" 8.27" 5.86" 13.39"

Thurlow

3/4" X 6" 14.76" 16.93" 2.56" 8.66" 5.12" 13.27"

Tulsa

3/4" X 6" 11.63" 14.88" 2.20" 11.50" 5.98" 20.25"

Tulsa LED

3/4" X 6" 11.63" 14.88" 2.20" 11.50" 5.98" 20.25"

Turbo Swirl

3/4" X 4" 10.00" 11.50" 2.25" 7.00" 5.00" 14.50"

Turbo Swirl CFL 3/4" X 4" 10.00" 11.50" 2.25" 7.00" 5.00" 16.50"

Turbo Swirl LED 3/4" X 4" 10.00" 11.50" 2.25" 7.00" 5.00" 16.50"

Vector Elite

3/4" X 4" 7.00" 11.25" 2.13" 10.38" 5.13" 15.50"

Vintage

3/4" X 4" 10.87" 12.92" 2.41" 11.02" 5.12" 18.43"

Vintage II

3/4" X 4" 11.38" 13.25" 2.38" 11.13" 5.13" 19.25"

Wengue

3/4" X 4" 9.00" 10.38" 2.50" 6.75" 5.13" 12.13"

Xavier

3/4" X 4" 16.00" 17.50" 2.00" 10.00" 5.00" 22.50"

Xavier II

3/4" X 4" 16.00" 17.50" 2.00" 10.00" 5.00" 22.50"

Zander

1/2" X 6" 11.88" 14.25" 2.20" 10.26" 5.98" 16.50"

Zephyr

3/4" X 6" 13.18" 11.93" 2.56" 9.84" 5.12" 16.90"

CEILING FAN SPECIFICATIONS – DIMENSIONS
