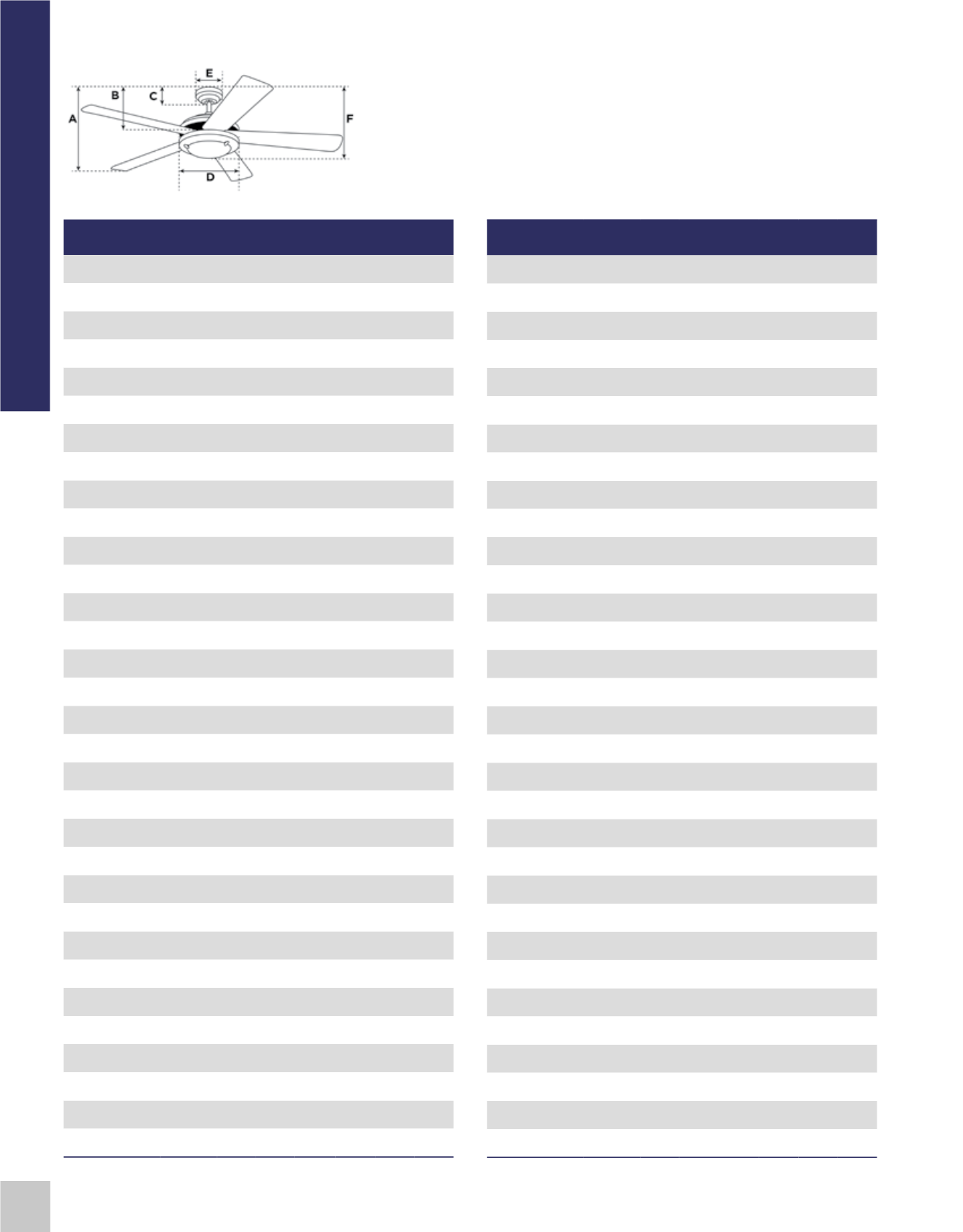

CEILING FAN SPECIFICATIONS
98
If a Combo Style Fan with a 4" Down Rod is Installed without the Down Rod, Subtract 3" from the Dimensions Listed (A, B, F).
If a Combo Style Fan with a 6" Down Rod is Installed without the Down Rod, Subtract 5" from the Dimensions Listed (A, B, F).
A. Ceiling to bottom of blade
B. Ceiling to bottom of switch housing
C. Ceiling to bottom of canopy
D. Width of motor housing
E. Width of canopy
F. Ceiling to bottom of light kit
Family Name
Size of
Down Rod
Included
A B
C D E F
Aerialist
N/A 18.50" N/A N/A 7.77"
N/A N/A
Alloy
3/4" X 4" 6.38" 11.00" 2.50" 6.75" 5.13" 11.75"
Alloy II
3/4" X 4" 10.00" 11.42" 2.44" 7.09" 5.12" 13.90"
Alloy LED
3/4" X 4" 8.07" 11.42" 2.44" 7.05" 5.12" 13.19"
Alta Vista
3/4" X 4" 10.83" 8.39" 2.44" 7.87" 5.12" 13.70"
Arcadia
3/4" X 4" 9.38" 11.00" 2.00" 9.75" 5.88" 14.00"
Barnett
3/4" X 4" 11.81" 12.60" 2.20" 11.42" 5.98" 21.26"
Bendan
3/4" X 4" 11.42" 7.87" 2.44" 10.24" 5.12" 14.17"
Bendan LED 3/4" X 4" 11.42" 7.87" 2.44" 10.24" 5.12" 14.17"
Brentford
3/4" X 4" 9.96" 11.65" 2.06" 12.36" 5.83" 18.78"
Carolina LED
N/A 6.88" 9.75"
N/A 11.10" N/A 13.75"
Casanova
N/A 8.00" 8.50"
N/A 11.00" N/A N/A
Casanova
Supreme
N/A 7.25" 8.50"
N/A 8.75"
N/A 12.50"
Cassidy
3/4" X 4" 11.22" 11.81" 2.09" 8.58" 5.12" 16.54"
Castle LED
3/4" X 6" 11.43" 12.63" 2.40" 10.49" 5.13" 15.98"
Cayuga
3/4" X 6" 13.78" 11.54" 2.56" 10.63" 5.12" 17.13"
Chambers
3/4" X 6" 12.20" 10.43" 2.52" 9.09" 5.12" 20.28"
Cliff
3/4" X 6" 15.35" 9.06" 2.52" 10.28" 5.12" 18.11"
Comet (Outdoor)
3/4" X 4" 11.00" 12.60" 2.40" 11.30" 5.10" 14.40"
Comet
3/4" X 4" 11.88" 14.25" 2.25" 11.50" 5.13" 14.25"
Contempra
N/A 7.48" 7.48"
N/A 10.24" N/A N/A
Contempra IV
N/A 7.13" 8.13"
N/A 11.50" N/A 13.00"
Contempra Trio
N/A 5.88" 7.50"
N/A 10.38'
N/A 13.38"
Contractor's
Choice
3/4" X 4" 10.25" 11.25" 2.25" 9.00" 5.25"
N/A
Damen
3/4" X 8" 12.40" 11.02" 2.06" 7.87" 5.86" 16.54"
Deacon
3/4" X 4" 11.81" 12.60" 2.44" 11.02" 5.12"
N/A
Desoto
3/4" X 6" 13.39" 13.78" 2.56" 8.27" 5.12" 15.75"
Elite
3/4" X 4" 9.63" 12.63" 2.13" 9.00" 5.25" 16.63"
Fairview
3/4" X 4" 12.25" 13.00" 2.38" 11.00" 5.13" 18.88"
Graham
3/4" X 6" 12.99" 10.63" 2.24" 7.64" 5.12" 18.50"
Great Falls
3/4" X 4" 10.75" 12.76" 2.72" 7.87" 5.20" 20.08"
Hadley
N/A 5.13" 6.75"
N/A 8.46"
N/A 10.75"
Family Name
Size of
Down Rod
Included
A B
C D E F
Halley
N/A 9.45" 2.95" 2.95" 9.45" 9.06" 13.78"
Harmony
3/4" X 6" 10.63" 12.75" 2.00" 7.50" 6.00" 17.13"
Industrial
1/2" X 12" 17.32" 15.55" 2.44" 7.72" 5.13"
N/A
Industrial (78049) 1/2" X 12" 18.50" 17.32" 4.02" 7.72" 5.71"
N/A
Kelcie
3/4" X 6" 12.60" 10.43" 2.09" 10.24" 5.12" 19.09"
Lafayette LED 3/4" X 6" 15.50" 16.13" 2.38" 12.25" 5.13" 24.00"
Longo
3/4" X 4" 13.00" 6.70" 2.06" 7.09" 5.86" 14.76"
Newtown
3/4" X 4" 11.38" 12.63" 2.38" 10.00" 5.13" 17.75"
Oasis
3/4" X 4" 13.63" 13.38" 2.38" 9.00" 5.13" 18.75"
Origami
3/4" X 4" 7.88" 10.00" 2.50" 6.75" 5.13" 14.75"
Petite
N/A 6.75" 8.00"
N/A 9.00"
N/A 12.00"
Quince
3/4" X 4" 9.00" 10.38" 2.50" 6.75" 5.13" 12.13"
Richboro Se
3/4" X 4" 12.25" 18.13" 2.25" 8.63" 5.13" 19.25"
Roundabout
3/4" X 4" 11.42" 13.75" 2.36" 7.68" 5.12" 15.92"
Solana
3/4" X 4" 10.75" 13.00" 2.00" 7.63" 6.25" 17.38"
Sparta
3/4" X 4" 10.70" 11.60" 2.10" 9.10" 5.86" 13.00"
Stella Mira
3/4" X 10" 16.22" N/A 2.56" 8.27" 5.12" 27.36"
Sumter LED
N/A 6.00" 7.87"
N/A 11.42" N/A 14.20"
Swirl
3/4" X 4" 13.50" 12.00" 2.25" 12.00" 5.25" 18.00"
Techno
3/4" X 4" 9.13" 11.02" 2.06" 8.39" 6.14" 12.40"
Techno II
3/4" X 4" 11.02" 11.81" 2.06" 8.27" 5.86" 13.39"
Thurlow
3/4" X 6" 14.76" 16.93" 2.56" 8.66" 5.12" 13.27"
Tulsa LED
3/4" X 6" 11.63" 14.88" 2.20" 11.50" 5.98" 20.25"
Turbo Swirl
3/4" X 4" 10.00" 11.50" 2.25" 7.00" 5.00" 14.50"
Turbo Swirl LED 3/4" X 4" 10.00" 11.50" 2.25" 7.00" 5.00" 16.50"
Vector Elite
3/4" X 4" 7.00" 11.25" 2.13" 10.38" 5.13" 15.50"
Vintage
3/4" X 4" 10.87" 12.92" 2.41" 11.02" 5.12" 18.43"
Vintage II
3/4" X 4" 11.38" 13.25" 2.38" 11.13" 5.13" 19.25"
Wengue
3/4" X 4" 9.00" 10.38" 2.50" 6.75" 5.13" 12.13"
Xavier
3/4" X 4" 16.00" 17.50" 2.00" 10.00" 5.00" 22.50"
Xavier II
3/4" X 4" 16.00" 17.50" 2.00" 10.00" 5.00" 22.50"
Zephyr
3/4" X 6" 13.18" 11.93" 2.56" 9.84" 5.12" 16.90"
