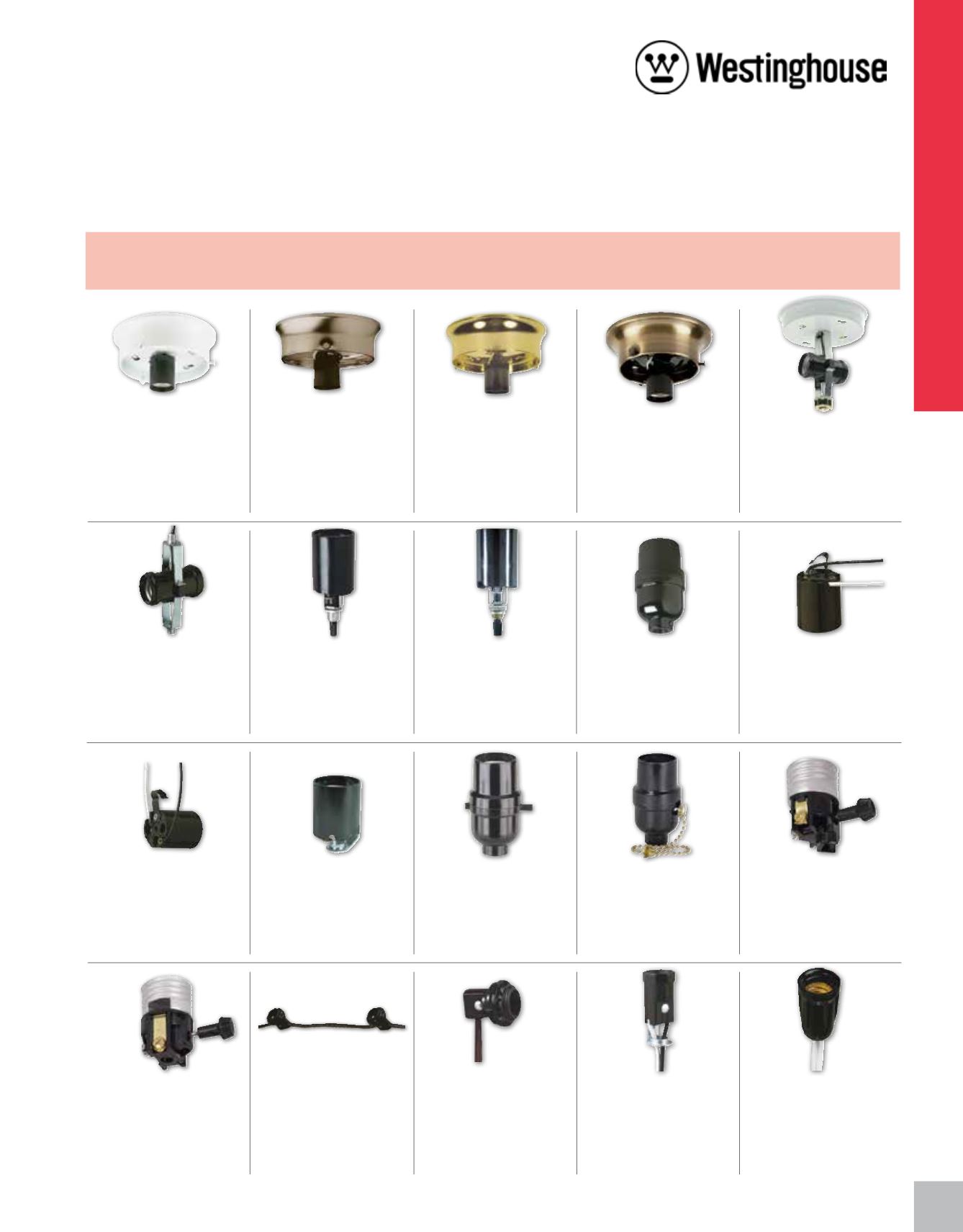

LIGHTING HARDWARE
115
CARDED PRODUCT SOLD IN INNER PACK ONLY.
* Bulk Pack
4" Glass Shade Holder Kit
70243 - Antique Brass Finish
Use (1) Medium Base Lamp,
60 Watt Maximum
Includes:
• 1 Crossbar
• 2 Mounting Screws
• 1 Green Grounding Screw
• 3 Knurled Fitter Screws
• 1 Fiberglass Insulator
3-1/4" Glass Shade Holder Kit
70230 - Brass Finish
Use (1) Medium Base Lamp,
60 Watt Maximum
Includes:
• 1 Crossbar
• 2 Mounting Screws
• 1 Green Grounding Screw
• 3 Knurled Fitter Screws
• 1 Fiberglass Insulator
4" Glass Shade Holder Kit
70238 - White Finish
Use (1) Medium Base Lamp,
60 Watt Maximum
Includes:
• 1 Crossbar
• 2 Mounting Screws
• 1 Green Grounding Screw
• 3 Knurled Fitter Screws
• 1 Fiberglass Insulator
1-Piece
Phenolic Shell
22205
Bottom Turn-Knob Socket
Medium Base
1/8-IP Nipple
660 Watts Max.
250 Volts
Height - 31/4"
3-1/4" Glass Shade Holder Kit
70236 - Antique Brass Finish
Use (1) Medium Base Lamp,
60 Watt Maximum
Includes:
• 1 Crossbar
• 2 Mounting Screws
• 1 Green Grounding Screw
• 3 Knurled Fitter Screws
• 1 Fiberglass Insulator
Turn-Knob
Phenolic Socket
70430
On/Off
Threaded 1/8-IP
Medium Base
660 Watts Max.
250 Volts
Vertical Phenolic
Snap-In Socket
70146
Fits into 3/8" x 1/4" Hole
Medium Base
660 Watts Max.
250 Volts
High Heat
Phenolic Socket
22234
Medium Base
Keyless
1/8-IP Bushing with Set Screw
660 Watts Max.
250 Volts, Height - 23/4"
Horizontal Phenolic
Snap-In Socket
70145
Fits into 7/8" x 1/4" Hole
Medium Base
660 Watts Max.
250 Volts
Pull Chain
Phenolic Socket
70433
On/Off
Tapped 1/8-IP
Medium Base
250 Watts Max.
250 Volts
Keyless
Phenolic Socket
70407
1/8-IP Hickey
Medium Base
660 Watts Max.
250 Volts
For every repair or replacement need, Westinghouse has you covered.
From sockets to switches, canopies to crossbars, we have the hard-to-find parts
required to make your fixtures perform like new. Available in bulk and packaged.
LIGHTING
HARDWARE
Twin Cluster Ceiling Kit
70234
Medium Base
Includes:
• 1 Canopy • 1 Wired Socket
• 1 Crossbar, • 2 Mounting Screws
• 1 Lock-Up Cap • 2 Rubber Washers
Ideal for Glass Diffusers
Twin Cluster Socket with
Male Threads on Each End
22259
Medium Base
6" Wire Leads, 18 Gauge,
105° Leads
660 Watts Max., 250 Volts
1/8-IP Nipple
Height - 43/8"
* * *
Push-Through
Phenolic Socket
22237
Medium Base
1/8-IP Cap with Side Screw
Aluminum Screw Shell
660 Watts Max.
250 Volts
Height - 25/8"
*
Turn-Knob
Socket
22502
On/Off
Medium Base
250 Watts Max.
250 Volts
Height - 111/16"
*
3-Way Turn-Knob Socket
22504
Medium Base
250 Watts Max.
250 Volts
Height - 111/16"
*
Black Harness Set
22381 - 3 Light
22382 - 4 Light
Candelabra Base
Fits 3/4" Hole
Includes Lock Nuts,
SPT-2, 18 Gauge, 105° Leads
75 Watts Max. Per Socket, 125 Volts
61/4" Between Sockets
12" on End Height - 11/4"
*
*
1 Light Black Harness Set
22380
Candelabra Base
Fits 3/4" Hole
Includes Lock Nut
12" Wire Leads
SPT-2, 18 Gauge,
105 ° Leads
75 Watts Max., 125 Volts
Height - 11/4"
*
1-3/4" Socket
22377
18" Wire Leads
Candelabra Base
1/8-IP Hickey
18 Gauge,
105° Leads
75 Watts Max.,
125 Volts
Height - 13/4"
*
Pigtail Socket
22220
24" Wire Leads
Candelabra Base
18-2, SPT-1
105° Leads
75 Watts Max.
125 Volts
Height - 11/8"
*
