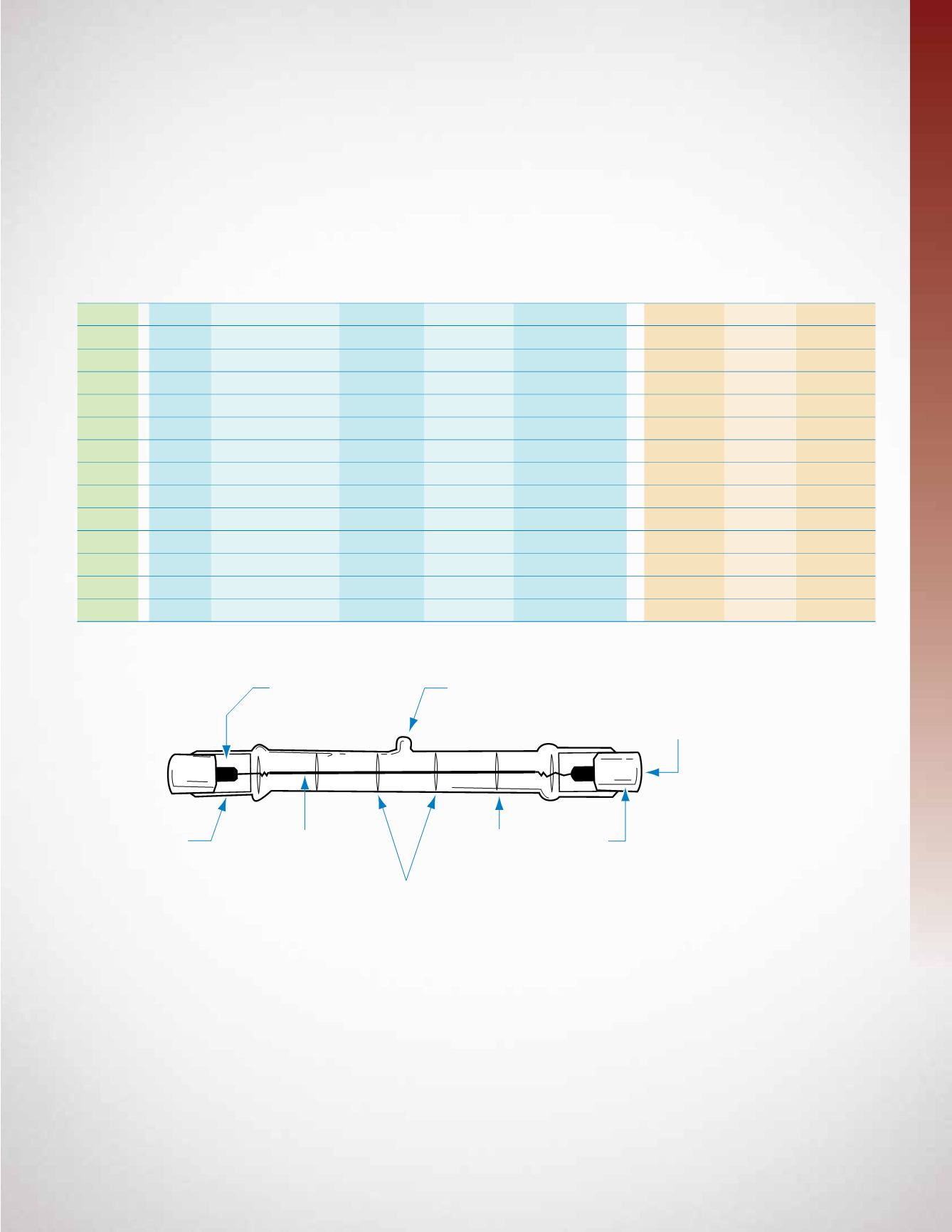

HALOGEN LAMP COMPONENTS
FILAMENT
SUPPORTS
SEAL
FILAMENT
BULB
(ENVELOPE)
FILLING TIP
CONTACT
MOLYBDENUM
FOIL
BASE
Avarietyofbasesare
used inhalogen lamps.
(pictured isaceramicRSCbasehalogen)
130 VOLT COMPARISON CHART
1
30V LAMP SPECIFICATIONS — OPERATING ON A 130V LINE
OPERATING ON A 120V LINE
Item
No.
Energy
Used
(Watts)
Domestic Code
Master
Carton/Inner
Pack
Avg.
Rated
Hours
Brightness
(Lumens)
Energy
Used
(Watts)
@ 120V
Avg. Rated
Hours
@ 120V
Brightness
(Lumens)
@ 120V
04764
75 75T4Q/GY8/130
36/6
2000
975
66
5600
731
04770
100 100T4Q/GY8/130
36/6
2000
1400
88
5600
1050
04783
150 150T3Q/RS/130
36/6
1500
2600
132
4200
1950
04784
150 150T3Q/RS/130
36/6
1500
2400
132
4200
1800
04828
300 300T3Q/130
100/10
1500
5950
264
4200
4463
04786
300 300T3Q/RS/130
36/6
1500
5000
264
4200
3750
04977
300 300T3Q/RS/130
36/6
2000
5000
264
5600
3750
04979
300 300T3Q/RS/130 2CD
36/6
4000
4000
264
11200
3000
04829
500 500T3Q/130
100/10
1500
10500
440
4200
7875
04788
500 500T3Q/RS/130
36/6
1500
9500
440
4200
7125
04980
500 500T3Q/RS/130
36/6
2000
9500
440
5600
7125
04981
500 500T3Q/RS/130 2CD
36/6
4000
8000
440
11200
6000
05005
60 60SL19/H/CG/130
36/6
2000
825
53
5600
619
36980
60 60PAR16/H/FL/130
24/6
2000
660
53
5600
495
130 Volt lamps will last longer when used on a 120 Volt line. However, the brightness (lumen output) of these 130 Volt lamps operating on
a 120 Volt line will be significantly reduced, while energy consumption (watts) will be less.
A 130 Volt lamp is perfect for use in hard-to-reach places and for use in lights that are on for long periods of time. Westinghouse Lighting
recommends that you check that there is enough brightness (lumen output) for your specific application or task.
NOTE:
Most electrical service is 120 Volts. By using 130 Volt lamps on a 120 Volt line, replacement andmaintenance costs can be reduced due to longer life.
XENON LAMPS
Xenon lamps are incandescent lamps filled with Xenon and other gases. Xenon lamps in comparison to their standard incandescent and
halogen lamp counterparts are more e cient, have longer life and have a crisper, brighter light output. All Xenon lamps provide instant
brightness and are fully dimmable.
ECO-HALOGEN LAMPS
Eco-Halogen lamps utilize an improved halogen burner that makes them more e cient than a standard halogen equivalent lamp.
Additionally Eco-PAR PLUS Halogen lamps utilize an advanced reflective technology to deliver extended life. All Eco-Halogen lamps provide
instant brightness and are fully dimmable, plus o er energy savings that meet federal energy e cient standards. Eco-Halogen lamps are
perfect alternatives to non-compliant legislated lamps.
HALOGEN LAMPS
