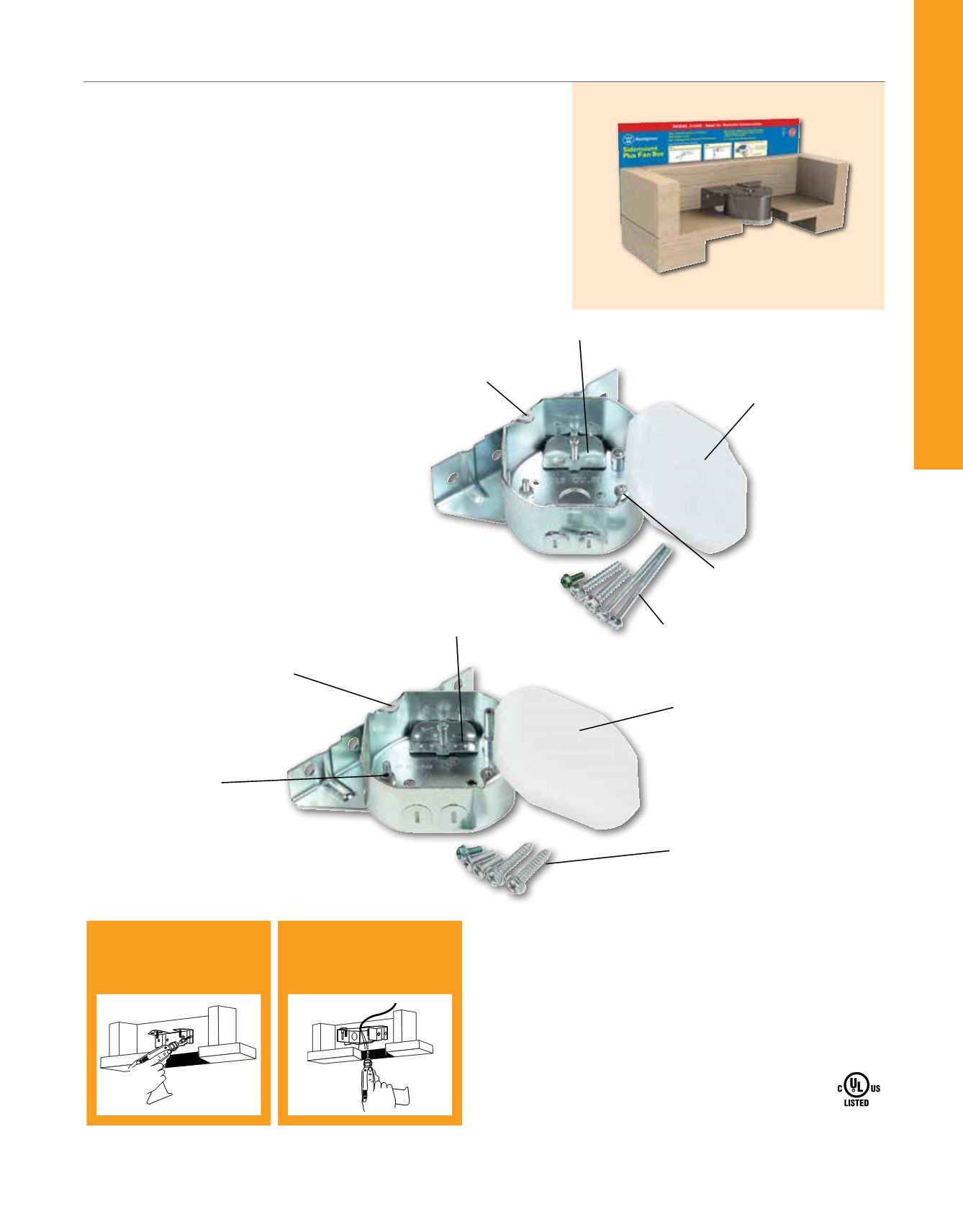

CEILING FAN AND LIGHT FIXTURE ACCESSORIES

www.westinghouselighting.com

221

Step 1

Mount bracket to joist

through 4" hole in sheetrock.

Step 2

Pull wire into box and remount

box to bracket.

Easy to Install through 4" Hole in Sheetrock

10-24 threads

for ceiling fans

and chandeliers

8-32 threads for cover

plates and lightweight

lighting fixtures

Saf-T-Cap® to protect bolts

and wires during painting

and sheetrock installation

Mounting hardware

Romex clamp

Saf-T-Cap® to protect bolts

and wires during painting and

sheetrock installation

8-32 threads for cover

plates and lightweight

lighting fixtures

Mounting hardware

10-24 threads

for ceiling fans

and chandeliers

1 Romex clamp

IDEAL FOR REMODEL APPLICATIONS

• Sidemount bracket is removable for easy replacement

of existing nail-on boxes without attic access.

• Fits all ceiling fans.

• Includes mounting hardware and instructions.

• For fixture support of 70 lbs. or less.

• Acceptable for fan support of 70 lbs. or less.

01240 & 0124011

Sidemount Plus Fan Box®

3 Knockouts for Conduit or Romex

Box Depth 2

1/8

"

Heavy Duty, 21.5 Cubic Inch

Dual Mount* Electrical Box

01240 Individually Packaged, 4 Per Cut Case

0124011 Bulk Packed, 12 Per Cut Case

01250 & 0125011

Sidemount Plus Fan Box®

3 Knockouts for Conduit or Romex

Box Depth 1

1/2

"

Heavy Duty, 15.5 Cubic Inch

Dual Mount* Electrical Box

01250 Individually Packaged, 24 Per Cut Case

0125011 Bulk Packed, 24 Per Cut Case

85E6

Sidemount Plus Fan Box® Display (18"L x 6

1

/

8

"D x 8"H)

#01240DISP

For more display information, contact your

Westinghouse Sales Representative.

Meets or Exceeds UL Standards Regarding Exposed Threads Within Box. Meets or Exceeds NEC

®

Safety Codes.

*Dual Mount = Box is threaded for 8-32 (ideal for box covers and light weight fixtures) and 10-24 screws (ideal for heavier fixtures and fans).

Sidemount Plus Fan Box®
